Virtual commissioning in manufacturing

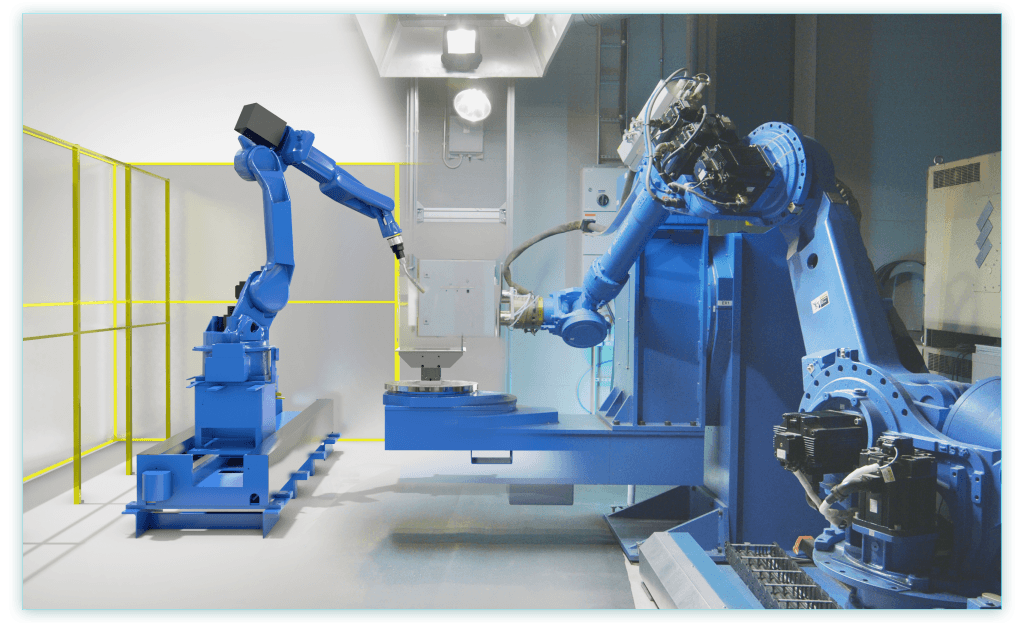

Virtual commissioning is transforming manufacturing by enabling early testing of machines and systems, crucial for meeting factory acceptance testing (FAT) deadlines. This approach reduces delays, costs and compromises, offering a transformative way to test and debug control software. Unlike traditional methods that delay testing until hardware assembly, virtual commissioning allows for earlier control software testing, like in Programmable Logic Controllers (PLCs) and virtual robot controllers, streamlining the commissioning phase and changing the conventional sequence of events.

Process and benefits

Virtual commissioning begins with a detailed static 3D CAD model, incorporating motion dynamics and control systems. This process, different from digital twins, brings benefits like increased efficiency, cost savings, enhanced safety and quality, and collaborative work environments.

It is useful in various manufacturing applications, from automation to complex packaging simulations. The comprehensive process includes developing a virtual model, system analysis, integrating kinematic and electrical data, control logic, simulations, robotics optimization and iterative refinements for optimal performance.

The role of virtual commissioning in digital transformation

By facilitating early problem identification and resolution, virtual commissioning can help enhance operational efficiency and is essential for modern manufacturing – helping maximize ROI and being a transformative element in developing advanced, efficient, and reliable manufacturing systems all from the comfort of your office (or wherever you may be).

Visual Components offers the necessary tools and expertise for virtual commissioning.

Virtual commissioning with Visual Components

How do you get started with virtual commissioning? Here, we provide a step-by-step example using Visual Components to help you get started.

Model development

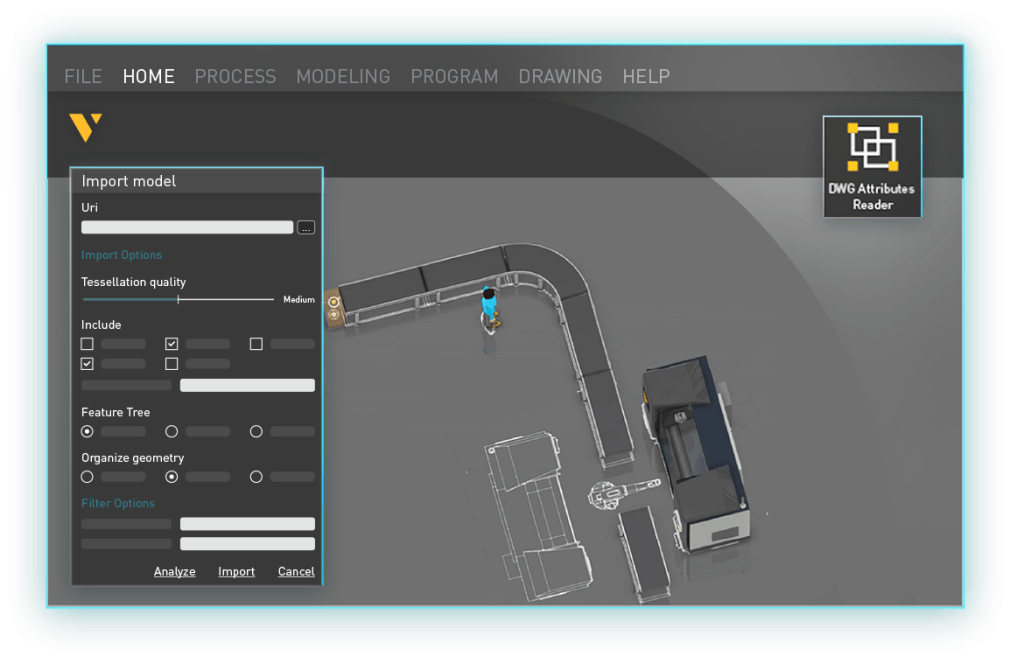

Create an accurate virtual model using CAD data and other resources (like the eCatalog), ensuring it’s detailed and closely aligned with the real-world design.

System analysis and building

Perform a detailed analysis of the system and build the virtual model to include kinematics, electrical data and integrated control systems.

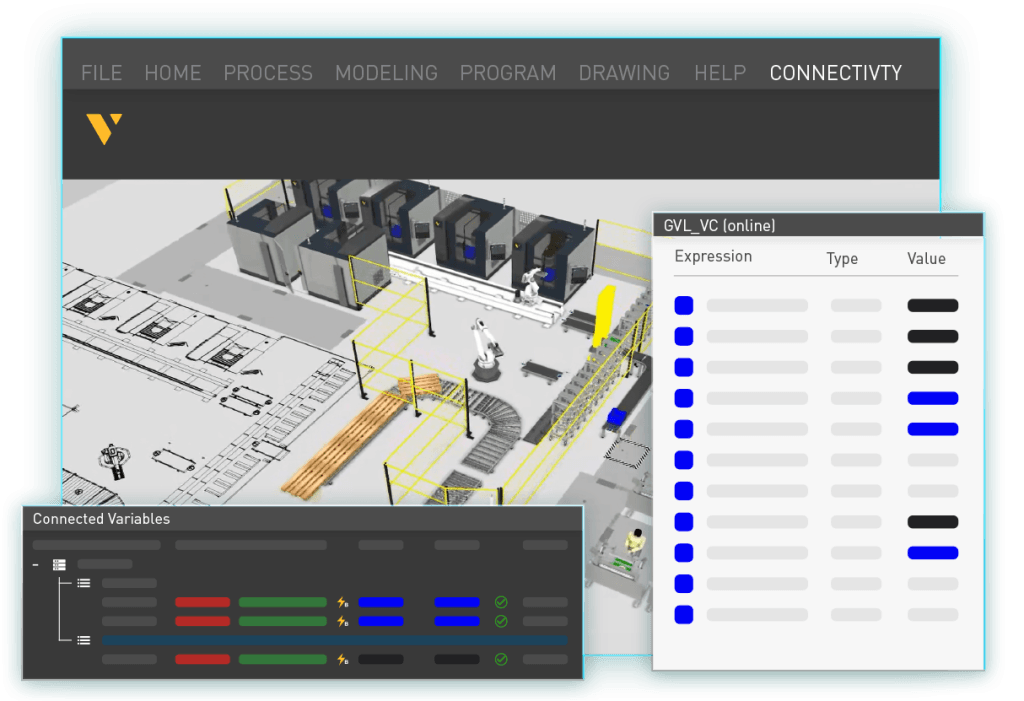

Control integration

Integrate control logic into the model, ensuring it accurately reflects the actual control systems used in physical machines.

Virtual robot controller integration and programming

In robotics projects, integrate virtual robot controllers into the model. Program robots to perform tasks virtually, ensuring that the programming and control logic stay in sync.

Simulation and testing

The platform’s intuitive ‘drag and drop’ functionality lets you position each component where it best suits your operations. Rearrange, adjust and settle on a design that maximizes space utilization and efficiency.

Robotics optimization

In robotics projects, robots performance should be optimized to ensure efficient installation and operation. Virtual programming involves refining robot movements and tailoring tasks for enhanced efficiency, speed and product quality.

Iterative refinement and safety checks

Refine the model iteratively based on test results for optimal performance and conduct rigorous safety and compliance checks.

Physical commissioning and continuous improvement

Complete physical commissioning to validate the system’s real-world behavior and engage in continuous improvement by comparing operational data with virtual commissioning outcomes.

Documentation and future reference

Thoroughly document the entire process, which is vital for future reference, troubleshooting, system upgrades or scaling of operations.

For robot programmers

Optimize robot programs virtually to reduce on-site programming and commissioning effort.

For manufacturing engineers

Quickly design, optimize and adjust layouts with minimal training to test what-if scenarios and minimize risks.

For production managers

Accurately optimize process and mitigate risks to maximize efficiency according to your operational needs.

For system integrators

Improve planning, decision-making and sales processes to boost productivity, reduce errors, enhance collaboration and customer engagement.
